How Is Extruded Acrylic Sheet Made? Complete Manufacturing Guide
Extruded acrylic sheet is one of the most widely used transparent plastic materials for modern signage, display fabrication, industrial processing, and architectural glazing. Many buyers and fabricators wonder: How is extruded acrylic sheet made?
Unlike cast acrylic produced by batch molding, extruded acrylic adopts a continuous automated extrusion process. This advanced manufacturing method delivers consistent thickness, stable flatness, cost-effective mass production, and excellent machinability. In this guide, we break down the full production steps, core manufacturing principles, key material features, and industry advantages of extruded PMMA sheets.
What Is Extruded Acrylic Sheet?
Extruded acrylic sheet is a rigid transparent panel made of high-purity PMMA (Polymethyl Methacrylate) resin. Through continuous melting, extrusion, calendering, and cooling molding, it forms uniform thin to medium-thick acrylic panels. Thanks to its streamlined production process, extruded acrylic features tight thickness tolerance, smooth surface, and great flexibility for CNC cutting, laser engraving, thermoforming, and printing. It is the top choice for large-volume commercial and industrial acrylic projects worldwide.
Step-by-Step Manufacturing Process of Extruded Acrylic Sheet
The entire production of extruded acrylic sheet is a closed, automated continuous workflow, ensuring stable quality and zero batch difference. Here are the six core production stages:
1. Raw Material Preparation & Feeding
High-quality pure PMMA pellets are selected as the core raw material, with no recycled impurities to guarantee high light transmittance and stable physical performance. Before production, the pellets are fully dried to remove internal moisture and avoid bubbles, streaks, or surface defects on the finished sheet. The dried PMMA pellets are then evenly fed into the extruder barrel through an automatic feeding system for continuous supply.
2. High-Temperature Melting & Plasticization
Inside the sealed extruder barrel, the PMMA pellets are heated at a constant temperature of 200°C to 250°C. With the rotation and propulsion of the precision screw, the solid pellets are fully melted and plasticized into a uniform, viscous molten PMMA fluid. The precise temperature and pressure control ensure no overheating decomposition, maintaining the material’s high transparency and molecular stability.
3. Die Extrusion & Initial Shaping
Under continuous screw pressure, the molten PMMA fluid is evenly forced through a precision flat die. The die gap is accurately calibrated according to target thickness (from 1mm to 20mm), preliminarily shaping the fluid into a flat continuous sheet. This step determines the basic width and thickness foundation of the finished acrylic sheet, laying the groundwork for subsequent precision calibration.
4. Precision Calendering & Surface Forming
The initially shaped hot acrylic sheet immediately passes through a group of highly polished stainless steel calender rollers. The high-precision roller gap strictly controls the final sheet thickness, achieving a thickness tolerance as low as ±0.1mm. Meanwhile, the smooth mirror surface of the rollers polishes the acrylic panel, forming a flawless, glossy surface without manual polishing. This process ensures consistent flatness and uniform texture across the entire sheet.
5. Gradual Cooling & Stereotype
After calendering, the high-temperature soft acrylic sheet goes through a multi-stage gradual cooling conveyor system. Slow and uniform cooling effectively releases internal stress, preventing finished products from warping, bending, or cracking during later cutting and processing. After full cooling and stereotyping, the acrylic sheet forms stable physical properties and fixed shape.
6. Trimming, Cutting & Finishing

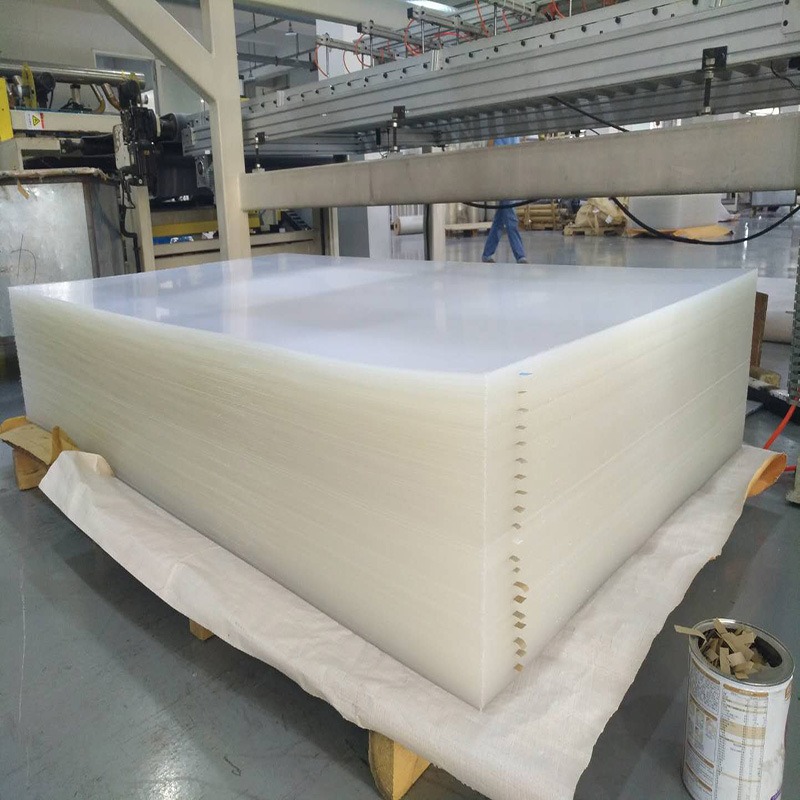

The continuous long acrylic sheet is automatically trimmed on both sides to remove uneven edges, then cut into standard sizes (1220x2440mm, 1000x2000mm) or customized lengths. Finally, the sheets undergo strict quality inspection for transparency, flatness, thickness deviation, and surface defects. Qualified products are covered with protective PE film to prevent scratches during transportation and storage.
Core Advantages Brought by Extrusion Manufacturing Technology
The unique continuous extrusion process gives extruded acrylic sheet irreplaceable industrial advantages compared with cast acrylic:
Ultra-Stable Thickness Consistency: Precision roller calibration ensures uniform thickness for every sheet, perfectly suitable for large-area splicing and precise CNC processing
Smooth Flawless Surface: Roller mirror forming delivers high-gloss surface with no grain, bubbles, or streaks, supporting high-definition UV printing and lamination
Excellent Machinability: Low internal stress makes it not easy to crack during laser cutting, routing, drilling, and thermoforming, ideal for intricate custom fabrication
High Cost Performance: Continuous automated production greatly improves efficiency and reduces unit cost, perfect for bulk wholesale and large-scale engineering projects
Stable Light Transmittance: High-purity raw materials and sealed production ensure up to 92% light transmittance, with long-term anti-yellowing and weather resistance
Extruded Acrylic vs Cast Acrylic: Process & Performance Differences
Most buyers confuse extruded and cast acrylic sheets. The essential difference lies in the manufacturing process, which leads to different application scenarios:
Production Mode: Extruded acrylic adopts continuous automated production; cast acrylic is made by manual batch mold pouring
Thickness Uniformity: Extruded acrylic has tighter thickness tolerance; cast acrylic has slight thickness deviation
Processing Performance: Extruded acrylic is better for thermoforming and high-volume cutting; cast acrylic has higher hardness and better anti-scratch performance
Cost & Output: Extruded acrylic is more cost-effective for bulk orders; cast acrylic is more suitable for high-end thick-board customization
Main Applications of Extruded Acrylic Sheet
Benefiting from its precise size, smooth surface, and excellent processing performance, extruded acrylic sheet covers a wide range of commercial and industrial scenarios:
Advertising & Signage: CNC 3D letters, transparent sign boards, light box panels, logo displays
Retail & Exhibition Displays: Transparent display racks, countertop showcases, exhibition booth decorations
Architectural & Decoration: Indoor partition panels, window glazing, ceiling light panels, decorative transparent walls
Industrial Processing: Equipment protective covers, transparent observation windows, anti-corrosion isolation panels
Daily & Creative Products: Aquarium panels, craft ornaments, gift packaging transparent covers
Final Verdict
Extruded acrylic sheet is manufactured through a scientific, standardized continuous extrusion process. From raw material melting, die shaping, precision calendering to gradual cooling and finishing, every step is strictly controlled to ensure stable quality, precise size, and excellent surface performance. It has become the preferred transparent material for mass production, precision processing, and cost-sensitive acrylic projects.
